RF, Coaxial, & Microwave Components

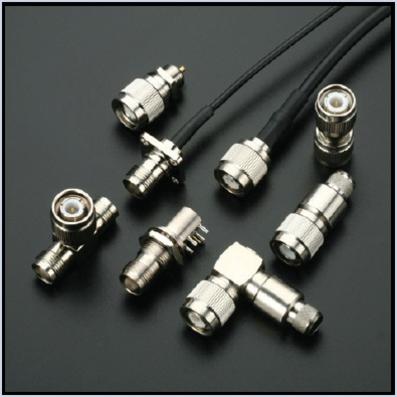

TNC Connectors

Meets Standard                                                            RoHS Compliant
MIL-C-39012

ELECTRICAL DATA
Impedance : 50ohm / Frequency range : DC to 11GHz
Impedance : 75ohm / Frequency range : DC to 1GHz
Contact current : DC 3.5A max.
Voltage rating : 250V rms
Contact resistance : 2.0 ㏁ - Center contacts
0.2 ㏁ - Outer contacts
Insulation resistance : 5000 ㏁ min.
Insertion loss : 0.18dB max. at 9GHz
VSWR : ≤1.50

MECHANICAL DATA
Coupling nut torque : 20Ncm-170Ncm
Life : 500 matings
Contact captivation : ≥27N

ENVIRONMENTAL DATA
Temperature range : -65℃~+125℃
Corrosion resistance : MIL-STD-202, Method 101, Condition B
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition B
Vibration : MIL-STD-202, Method 204, Condition B
Shock : MIL-STD-202, Method 213, Condition G
