Premier RF can also produce functional equivalents to most MFG's connectors. Contact us for assistance.
- SMA Receptacle Plug (Contact us)
- SMA PCB Plug (Contact us)
- SMA PCB Jack (Contact us)
- SMA CAPS, Dust, Shorts (Contact us)
Performance Data
Meets standard MIL-C-39012 RoHS Compliant
ELECTRICAL
Impedance : 50ohm
Frequency range : DC to 18GHz
Contact current : DC 2.0A max.
Working voltage : 1000V - Semi-rigid cable 750V - Flexible cable
Contact resistance : 3.0 ㏁ - Center contacts
2.5 ㏁ - Outer contacts
Insulation resistance : 5000 ㏁ min.
Insertion loss : 0.05 √f(GHz)dB
VSWR : ≤1.15+0.2f(GHz)
RF leakage : -60dBm min. between 2-3GHz
MECHANICAL
Coupling nut torque : 12Ncm-170Ncm
Coupling nut retention force : ≥200N
Life : 500 cycles
Contact captivation : ≥27N
ENVIRONMENTAL
Temperature range : -65℃~+125℃
Corrosion resistance : MIL-STD-202, Method 101, Condition B
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition B
Vibration : MIL-STD-202, Method 204, Condition D
Shock : MIL-STD-202, Method 213, Condition I

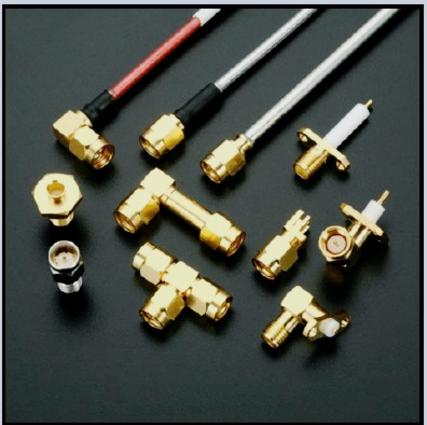

SMA Connectors
