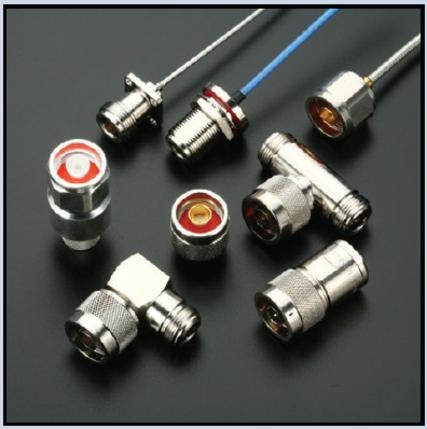

Type N Connectors

Premier RF can also produce functional equivalents to most MFG's connectors. Contact us for assistance.





  • N Receptacle Plug  (Contact us)


  • N Receptacle Jack  (Contact us)


  • N PCB Jack  (Contact us)


  • N CAP  (Contact us)

 Meets standard MIL-C-39012                            RoHS Compliant

ELECTRICAL DATA
Impedance : 50Ω & 75Ω
Frequency range : DC~11* GHz(50Ω), DC 1.5 GHz(75Ω)
Contact current : DC 3.5A max.
Voltage rating : 1000V rms
Contact resistance - Center contacts : 2.0 mΩ
Outer contacts : 0.2 mΩ
Insulation resistance : 5000MΩ min.
Insertion loss : ≤0.15dB at 9GHz
V.S.W.R : ≤1.5
RF leakage : -90dBm min. from 2~3GHz

*18 GHz available for some applications

MECHANICAL DATA
Coupling nut torque : 20Ncm -170Ncm
Coupling nut retention force : 450 N
Life : 500 matings.
Contact captivation : ≥27N

ENVIRONMENTAL DATA
Temperature range : -65OC~+125OC
Corrosion resistance : MIL-STD-202, Method 101, Condition B.
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition B.
Vibration : MIL-STD-202, Method 204, Condition B.
Shock : MIL-STD-202, Method 213, Condition I.
