Premier RF can also produce functional equivalents to most MFG's connectors. Contact us for assistance.

Meets Standard                                                   RoHS Compliant
MIL-C-39012

ELECTRICAL DATA
Impedance : 50Ω
Frequency range : DC~6 GHz
Contact current : DC 1.5A max
Voltage rating : 250V rms
Contact resistance : Center contacts : 5.0 mΩ
Outer contacts : 1.0 mΩ
Insulation resistance : 1000MΩ min.
Insertion loss : 0.1dB max. at 1GHz
V.S.W.R : ≤1.5

MECHANICAL DATA
Engagement force max. : 25 N
Separation force min. : 8 N - max. 20 N
Life : 500 matings.
Contact captivation : 10 N

ENVIRONMENTAL DATA
Temperature range : -65OC~+125OC
Corrosion resistance : MIL-STD-202, Method 101, Condition B.
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition C.
Vibration : MIL-STD-202, Method 204, Condition D.

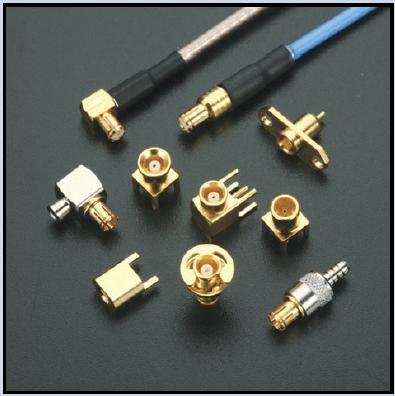

  • MCX Straight Plug


  • MCX Straight Jack


  • MCX Right Angle Plug


  • MCX Bulkhead Jack


  • MCX Receptacle Jack


  • MCX PCB Plug


  • MCX PCB Jack

MCX Connectors

Premier RF
