Premier RF




Meets Standard                                                                  RoHS Compliant
MIL-C-39012

ELECTRICAL DATA
Impedance : 50ohm / Frequency range : DC to 4GHz
Impedance : 75ohm / Frequency range : DC to 1GHz
Contact current : DC 3.5A max.
Voltage rating : 500V rms
Contact resistance : 2.0 ㏁ - Center contacts
0.2 ㏁ - Outer contacts
Insulation resistance : 5000 ㏁ min.
Insertion loss : 0.3dB max. at 3GHz
VSWR : ≤1.15 (Return loss better than 23.0dB)

MECHANICAL DATA
Coupling nut torque : 0.07Nm~0.25Nm
Coupling nut retention force : 44.5daN
Life : 500 matings
Contact captivation : ≥27N

ENVIRONMENTAL DATA
Temperature range : -65℃~+125℃
Corrosion resistance : MIL-STD-202, Method 101, Condition B
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition B
Vibration : MIL-STD-202, Method 204, Condition B
Shock : MIL-STD-202, Method 213, Condition G

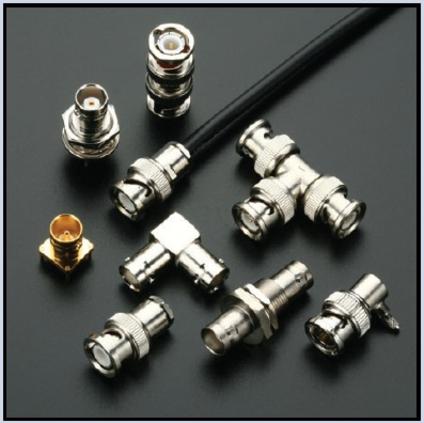

BNC Connectors


RF, Coaxial, & Microwave Components

Premier RF can produce functional equivalents to most MFG's connectors. Contact us for assistance.





  • BNC Receptacle Jack (Contact us)


  • BNC PCB Jack (Contact us)
